Teaching a computer to read by hand: feature engineering for OCR

Before you can classify a handwritten digit you have to describe it, and in 2018 “describe it” meant deciding, by hand, what to measure. Not a convolution stack that learns its own descriptors: a list of numbers I chose myself, out of a hunch about what makes a “1” a “1” and an “8” an “8”. This is the assignment where I found out how much of that hunch survives contact with 10,000 real handwritten test digits, and where a formula called Kononenko’s information gain turned “I think this feature is useful” into a number I could argue with.

Ten sample MNIST digits, 0 through 9, as used in the report — A sample of digits 0–9 from the MNIST dataset (`src_readme.md` lines 32–52): the raw material every feature below is measured on.

The pipeline, once, before the features

Every feature in this post is computed by the same short script, GenerateDescriptors.py, reading straight through the MNIST idx files. It thresholds, finds contours, measures them, and warps the result to a canonical size, all with OpenCV, since this was an assignment about Bayesian classification, not about re-deriving findContours. The canonicalisation step in particular is easy to skim past and easy to forget is even happening, so it gets its own section before the features that depend on it.

Threshold, then find contours

ret,threshImage = cv2.threshold(image,20,255,cv2.THRESH_BINARY)
im2, contours, hierarchy = cv2.findContours(threshImage,cv2.RETR_TREE,cv2.CHAIN_APPROX_SIMPLE)

outputDescriptor={"classLabel":lbl}

maxContour=max(contours,key=cv2.contourArea)

outputDescriptor["pixelCount"]=cv2.contourArea(maxContour)
outputDescriptor["arkLen"]=cv2.arcLength(maxContour, False)

(GenerateDescriptors.py:98-107.) A pixel counts as ink once its intensity clears 20. MNIST backgrounds are flat black, so this threshold has very little work to do. Every contour in the thresholded image gets found with RETR_TREE (full nesting hierarchy, compressed to straight-run vertices with CHAIN_APPROX_SIMPLE), and the single largest one by area becomes “the” contour for the two features that follow.

The canonicalisation step everyone forgets

rect = cv2.minAreaRect(maxContour)
box = order_points(cv2.boxPoints(rect))

dst = np.array([[0, 0],[31, 0],[31, 31],[0, 31]], dtype = "float32")

M = cv2.getPerspectiveTransform(box, dst)
bigImg = cv2.warpPerspective(image, M, (32, 32))

moments=cv2.moments(bigImg, binaryImage=False)

(GenerateDescriptors.py:135-146.) minAreaRect fits the tightest rotated rectangle around the largest contour; order_points (a routine borrowed from a well-known PyImageSearch post, credited in a comment at GenerateDescriptors.py:35-36) sorts its four corners into top-left, top-right, bottom-right, bottom-left by the sum and difference of their coordinates; and a perspective warp maps that rotated box onto a fixed 32×32 square. Every downstream feature that touches bigImg (the image moments, the Hu moments, HOG) is measured on this deskewed, size-normalised digit, not the raw 28×28 one. It is the single most consequential ten lines in the file and the easiest to miss on a first read, because nothing about it produces a headline number of its own.

Kononenko’s information gain

Before the features themselves, the yardstick they’re all measured against. Given a feature $X$ and a class $C$ , the information gain is

I_g(C|X) = \log_b p(C|X) - \log_b p(C)

Base 2 is conventional (it’s “bits of information gained”) but the report uses $b = M = 10$ , the number of classes, specifically so that $I_g(C|X) \le 1$ and the number reads directly as a fraction of maximum possible gain. Expressed against a predicted class $P$ rather than the feature value directly:

I_g(C|P) = \log_{10} p(C|P) - \log_{10} p(C)

A feature that tells you nothing beyond the class base rate scores 0. A feature that is worse than knowing nothing (one whose value, for a given predicted class, actually makes the true class less likely than the prior) scores negative. That second case shows up more than once below, and it’s the more interesting failure mode: not “no signal” but “actively misleading signal,” which is a different bug to go looking for.

Arc length

\text{arc length} = \text{perimeter of the longest continuous ink stroke}

The hypothesis: a “1” has a short stroke, other digits don’t, so this should split “1” from everything else cleanly. Because the distribution is multi-modal (a “5” written as two strokes versus one continuous stroke are genuinely different shapes with the same label), the report bins the values rather than fitting a single Gaussian per class.

Class	$I_g(C\vert P)$	Class	$I_g(C\vert P)$
0	0.4724	5	0.7012
1	0.8630	6	0.3529
2	0.3641	7	0.4001
3	0.5294	8	0.1622
4	0.3066	9	0.4824

(src_readme.md lines 76–88.) The “1” hypothesis holds up: 0.863 is the highest score any of this post’s three features gets, on any class. “5” does well too, at 0.701: not because a “5” is short, but because it’s consistently one length, in contrast to a “4”, which the report calls out by name as the confusable neighbour (src_readme.md lines 568–571): a “5” always resolves to roughly the same continuous stroke, while a “4” is drawn with wildly different numbers of strokes and crossings depending on handwriting style, so its arc length is all over the place and tells you comparatively little.

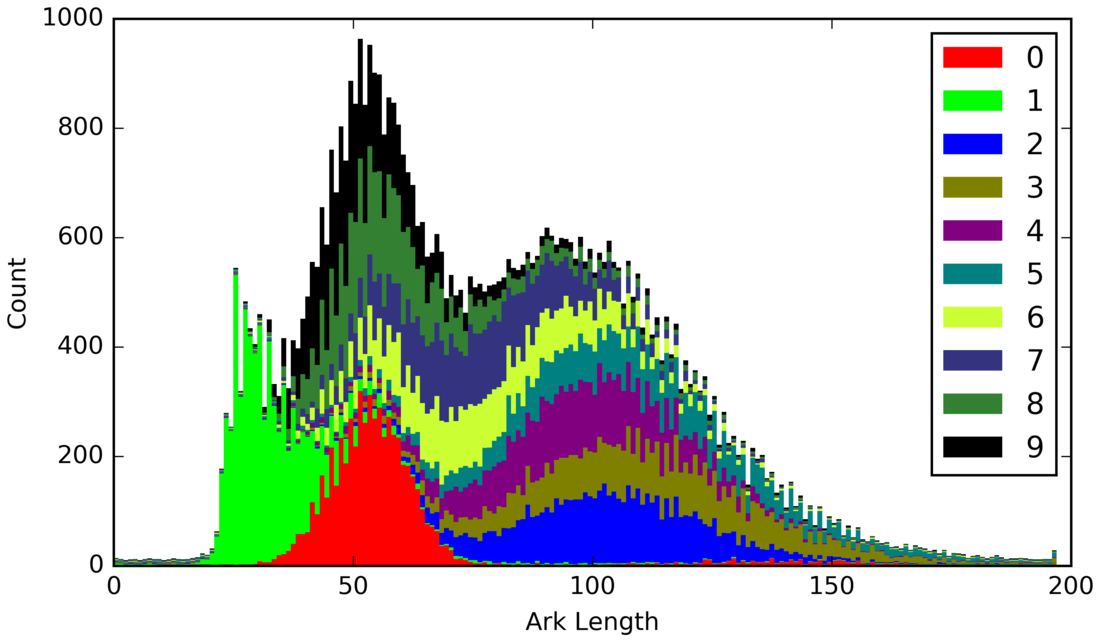

Stacked bar chart of arc length versus digit class count — Arc length binned against class counts (`src_readme.md` line 104, `Figs/P2/IGarkLen.png`): the “1” spike sits almost entirely in the short-arc bins.

Area enclosed

The next feature asks a different question: how much background does the ink surround? GenerateDescriptors.py answers it by re-running findContours, throwing away anything implausibly small or large, and summing what’s left:

im2, invContours, hierarchy = cv2.findContours(threshImage,cv2.RETR_TREE,cv2.CHAIN_APPROX_SIMPLE)

for i,cnt in reversed(list(enumerate(invContours))):
    cntarea=cv2.contourArea(cnt)
    if cntarea>700 or cntarea < 2:
        invContours.pop(i)

outputDescriptor["numValidContours"]=len(invContours)

maxVal=0
TotalSum=0
for cont in invContours:
    area=cv2.contourArea(cont)
    TotalSum+=area
    maxVal=maxVal if maxVal > area else area
outputDescriptor["areaEnclosed"]=TotalSum-maxVal

(GenerateDescriptors.py:163-179.) On a 28×28 image the giant outer contour tracing the whole ink blob comfortably clears the 700-pixel ceiling and gets filtered out, leaving mostly the small interior loops: the holes in a “0”, a “6”, an “8”, a “9”. Subtracting the single largest of what’s left from the sum is a quiet detail: for a digit with exactly one hole (a “0”), that leaves 0, which looks wrong until you notice the next feature is built from exactly that count.

A zero with its enclosed area filled in red — What “area enclosed” is measuring, made visible (`Figs/P2/0filled.png`).

Class	$I_g(C\vert P)$	Class	$I_g(C\vert P)$
0	0.9143	5	0.0491
1	0.2468	6	0.5271
2	0.2845	7	0.1131
3	−0.0043	8	0.5912
4	−0.0336	9	0.5291

(src_readme.md lines 121–133; both extremes checked directly against the LaTeX source before quoting them, per the report’s own numbers rather than a rounded summary.) This is the payoff of the whole exercise, in one table. 0.9143 for “0”: a zero is, almost by definition, a loop, and this feature measures exactly that loop’s interior. −0.0043 for “3”: a three encloses nothing, a four encloses nothing, so both collapse into the same “zero pixels enclosed” bin as every other non-looping digit, and a feature that can’t tell a “3” from a “7” or a “1” this way is worse than the class prior, not merely unhelpful. Same intuition, confirmed for zeros and quietly falsified for threes, by the same number.

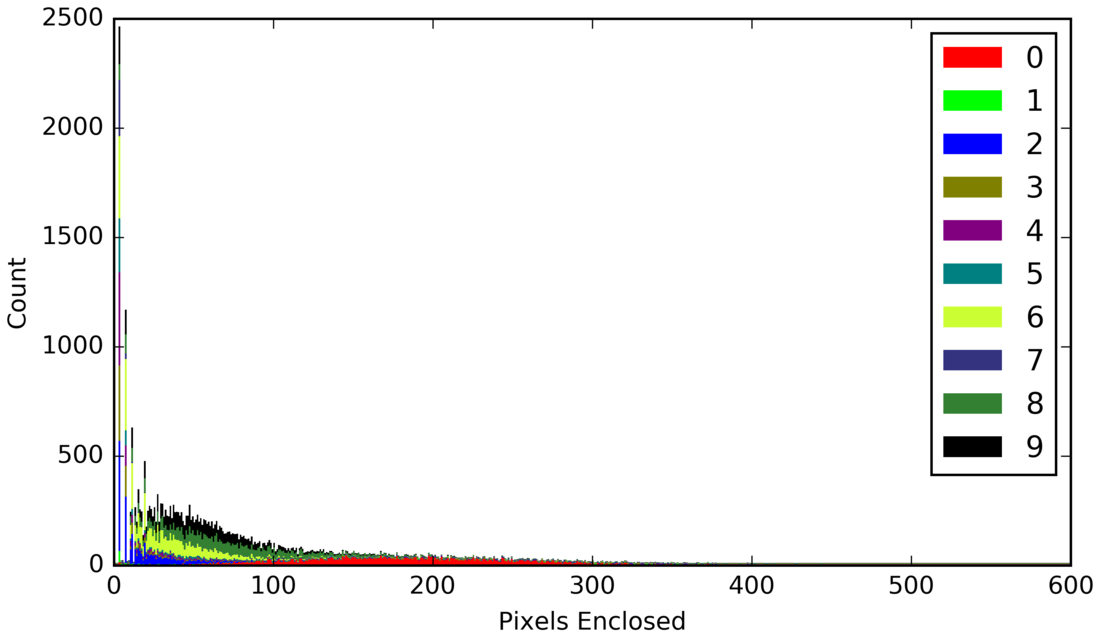

Stacked bar chart of area enclosed versus digit class count — Area enclosed, binned. The zero-pixel bin is removed from the plot, since it held most of the data (`Figs/P2/IGareaEnclosed.png`).

Number of contours

The same filtered contour list from above, counted rather than summed, aimed at one specific confusion: 3 and 8 look alike to a lot of hand-built descriptors, and an “8” has two holes where a “3” has none.

\text{number of contours} = \bigl|\{\, c \in \text{contours} : 2 \le \text{area}(c) \le 700 \,\}\bigr|

A digit 8 with all three of its contours highlighted in orange — Three contours on one “8”: the outer silhouette plus both interior loops (`Figs/P2/8Cont.png`).

Class	$I_g(C\vert P)$	Class	$I_g(C\vert P)$
0	0.4631	5	0.0491
1	0.2472	6	0.0184
2	−0.0135	7	−0.0119
3	−0.0043	8	0.7254
4	−0.0078	9	−0.0039

(src_readme.md lines 170–182.) It is a genuinely single-purpose feature (everything except 0, 1 and 8 scores at or below zero) and it works exactly where it was aimed: 0.725 for “8”, built for the specific job of separating “8” from “3”, with essentially no signal anywhere else. A narrow, built-to-order feature that does its one job is still a good feature; it just isn’t a general one, and the classifier needs several of these stacked together rather than one that does everything.

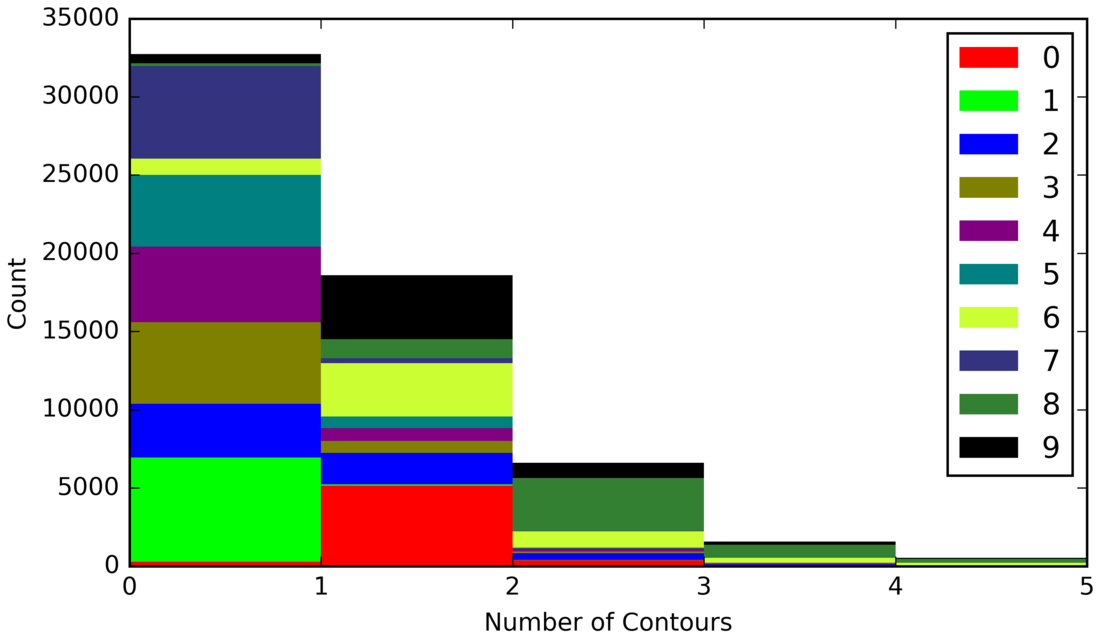

Stacked bar chart of number of contours versus digit class count — Contour count, binned (`Figs/P2/IGnumValidContours.png`).

The features that don’t get their own write-up

GenerateDescriptors.py computes considerably more than these three. Alongside arc length, area enclosed and contour count, it extracts the raw contour pixel count, the minAreaRect’s own length/width/area, seven Hu moments and eight raw image moments, a Harris corner count, and horizontal/vertical Hough line counts. Every one of them is loaded back and used to build the trained classifier (TrainOnMetadata.py:12-29, PartBTest.py:9-19). They just don’t get the same information-gain write-up in the report’s prose that arc length, area enclosed, contour count and HOG (next post) do. HOG in particular is worth flagging now and coming back to: its worst per-class information gain, 0.905, beats this post’s best number by a comfortable margin: the report says outright it “could even be used by itself.” That’s the next post.

Hough lines, with a bug

lines = cv2.HoughLines(threshImage,1,np.pi/180,13)
# ...classify each detected line as roughly horizontal or vertical...
    outputDescriptor["HLines"]=len(VLines)
    outputDescriptor["VLines"]=len(HLines)

(GenerateDescriptors.py:183-227, key lines 226-227.) Read that assignment again and it’s an easy one to miss: the variable holding near-vertical lines gets written out under the JSON key "HLines", and the variable holding near-horizontal lines gets written out under "VLines". Every trained model built from this file’s output has had its horizontal and vertical line counts swapped, silently, at the point of serialisation. It’s a fun one to find years later: trivial to catch by eye on a single digit, and easy to miss forever in a training pipeline that never looks at the raw numbers again.

Harris corners

cornerImg = cv2.cornerHarris(255-image,2,1,0.14)
corners=np.argwhere(cornerImg > 0.02)
# ...deduplicate points within 3px of one another...
outputDescriptor["cornerCount"]=len(corners)

(GenerateDescriptors.py:232-244.) Corners on the inverted image (bright background, dark ink) with a small 2×2 block, an aperture-1 Sobel (a plain central difference, no smoothing pass), sensitivity $k=0.14$ , and a de-duplication pass that discards any corner within 3 pixels of one already kept: the exact clustering logic my own implementation reuses below.

The crate (wasm/crates/digits-wasm/src/features.rs) implements Moore-neighbour contour tracing, a scanline flood fill, a rotating-calipers minimum-area rectangle, and the perspective warp with bilinear sampling, all from scratch, no imageproc, no OpenCV. It gets close, not identical, and getting exactly identical was always going to be the hard part, so here’s where the two line up and where they don’t:

Contours. OpenCV’s RETR_TREE builds a full nesting hierarchy in one pass. This crate instead traces outer boundaries of ink components with a textbook Moore-neighbour tracer, and finds holes independently with a scanline flood fill of the background, checking which background regions never touch the image border. For every digit shape (no ink island sitting inside a hole sitting inside more ink) the two answers agree. A shape with three-deep nesting would not be represented correctly; MNIST digits never have one.
Arc length. Measured on the raw 8-connected boundary chain rather than OpenCV’s CHAIN_APPROX_SIMPLE-compressed one. Removing collinear interior points from a straight run doesn’t change that run’s total Euclidean length, so the two should agree to floating-point rounding. I haven’t run this against the report’s own quoted distribution to confirm the bin-by-bin fit, so I won’t claim more than that.
Area enclosed. Where the report sums contourArea (a shoelace-formula polygon area) over small hole contours, the widget counts flood-filled pixels directly. Conceptually the same question (how much does this digit’s ink enclose?) answered a different way, and the numbers won’t match exactly pixel for pixel against a polygon area.
Harris and Hough are standard textbook implementations, tuned by eye rather than against the report’s exact numeric response scale. Neither gets its own information-gain section above, so exact agreement wasn’t the goal: a reasonable corner or line count was.

I’d rather say precisely where the fidelity ends than claim a match I didn’t verify.

A digit 8 with its three contours highlighted — InteractiveDraw a digit, watch the features get extracted

Draw a wonky, off-axis “7” and watch the minAreaRect panel and the deskewed 32×32 next to it: that’s the moment the canonicalisation section above stops being an abstract ten lines of Python and starts being a picture. The three gauges below the contour panels place your digit’s own arc length, enclosed area and contour count on the report’s real bin ranges (TrainOnMetadata.py:12-29) next to its real per-class information gain; untick a feature to grey it out of the combined chart and see how much of the picture that feature alone was carrying. “Export feature vector” writes out exactly the numbers the next post’s classifier will want.

Note

The drawing canvas assumes dark ink on light paper, like a pen: it inverts what you draw before feeding it to the pipeline, because MNIST’s own convention is bright ink on a black background. An upload that’s already in that convention (a scan, or another MNIST-style image) has a checkbox to skip the inversion.

It also puts what you draw through MNIST’s own size normalisation, which is the step the credit above says I got for free on the real data: crop to the ink’s bounding box, scale the long side to 20 px with the aspect ratio kept, then shift so the centre of mass lands in the middle of the 28x28 field. Without it, the same digit drawn small in a corner and large in the middle would land in different bins, and the gauges would be placing your drawing on a distribution it was never on.

What’s next

Arc length, area enclosed and contour count get this post’s full information-gain treatment because they’re small, explainable, hand-built hypotheses: each one a single sentence of “I think this measures X.” The next post is the opposite kind of feature: the Histogram of Oriented Gradients, which scores above 0.90 for every class simultaneously and doesn’t reduce to a one-line intuition nearly as easily. Both feed the same naive Bayes classifier, in the post after that.
