Mean shift, or how to segment an image without knowing how many regions there are

k-means makes you commit to a number up front. Tell it “5 clusters” and it will hand you exactly 5, whether or not the picture actually contains five things. Mean shift refuses that question. It treats every pixel as a point in colour space, notices that a region of the photograph is really just a bump in the density of that point cloud, and finds the bumps by climbing them, however many there turn out to be.

This is the report’s Section 7.1, and it belongs to Comaniciu and Meer, whose two papers turn a one-paragraph idea into something you can actually run on a photograph: random search windows instead of a walk per pixel, a sanity check that a colour cluster has to pass in the image, not just in colour space, and a radius-expansion pass to sweep up what is left over. That middle step (a cluster is only accepted if it forms a connected blob of at least N_min pixels in the image) is the one most write-ups skip, and it is the one this post is actually about.

A point cloud with bumps in it

Convert an image from BGR to Luv and every pixel becomes a point in a 3-D colour space where Euclidean distance is roughly perceptual distance: two points close together in Luv really do look like similar colours, which is not true of raw RGB. A region of the photograph (the sky, a roof, a face) is a lot of pixels with nearly the same colour, so it shows up as a dense cluster of points. Find the dense clusters, and you have found the regions.

Algorithm 1 of the report (report-png/report-22.png) is the whole idea, seven lines long:

procedure MEANSHIFT(Initial Point (p), Feature Vectors (F), Window radius (r), Convergence Threshold (α))
    repeat
        μ ← p
        Indices ← i where ‖Fᵢ − p‖₂ ≤ r
        p ← Mean(F[Indices])
    until ‖μ − p‖₂ < α
    return p
end procedure

Drop a window of radius $r$ at a point, take the mean of every feature vector inside it, move there, repeat. Each move is a step toward wherever the local density is highest: literally the mean shift the algorithm is named for, and the walk stops once it settles, at $\alpha$ . Every point that walks to (nearly) the same place belongs to the same region.

The report names two problems with this in its raw form. First, run it as written and you have to start a separate walk from every pixel: for a modest photograph that is tens of thousands of walks. Second, a point that starts almost exactly between two modes can stall in the gap, pulled equally by both and settling nowhere useful. The fix for the second problem the report offers is a Gaussian-weighted mean instead of a flat one, so points closer to the current estimate count for more. Comaniciu and Meer’s five steps (report-png/report-22.png) solve the first:

Map the image into feature space (RGB to Luv transformation).
Define $M$ random search windows across the feature space.
Find regions of high density by applying the mean-shift algorithm.
Validate the extracted centres in both the image domain and feature space.
Allocate the remaining pixels.

Step 3 runs the walk from only the densest of $M$ random starting windows, not from every pixel: one walk finds one region, and the pixels it claims are removed from consideration before the next window is drawn. That is the whole trick that makes this tractable on a real photograph.

The five steps, as code

Algorithms/MeansShift.py is 265 lines, and mean_shift_alg (lines 145–243) is steps 1–5 in order. Step 1, the colour-space mapping, plus a second, 3×3-box-filtered copy of the same image that step 2’s candidates are drawn from:

def mean_shift_alg(img, param_mode=0):
    mean_img = cv2.boxFilter(img, cv2.CV_8U, (3, 3))
    feature_space_img = cv2.cvtColor(img, cv2.COLOR_BGR2Luv)

    image_co_ordinates = get_image_indicies(img)
    flat_feature_space_img = feature_space_img.reshape((-1, feature_space_img.shape[-1]))
    flat_feature_space_mean_img = cv2.cvtColor(mean_img, cv2.COLOR_RGB2Luv).reshape((-1, feature_space_img.shape[-1]))

I double-checked that cv2.COLOR_RGB2Luv line more than once while porting this, and it really is the wrong conversion constant, not a typo I am misreading. mean_img was box-filtered from img, which cv2.imread hands back as BGR, exactly like feature_space_img two lines above it. Converting the same byte-order array with RGB2Luv instead of BGR2Luv silently swaps the red and blue channels of every candidate window’s starting colour. It does not corrupt the final result: get_close_point immediately converges using the correctly converted flat_feature_space_img, so a mis-hued candidate is only ever a slightly-wrong place to start climbing from, not a wrong answer. Still, it is a genuine slip, and a fun one to turn up while revisiting old work. I did not reproduce it in the Rust port (more on that below).

Step 2 and step 3: draw $M=200$ random candidates from the box-filtered image, count how many real pixels fall within $r$ of each, and mean-shift the best one:

sigma = np.std(feature_space_img.flatten())
params = Parameters(sigma, param_mode)
M = 200
clusters = []

while True:
    if len(flat_feature_space_mean_img) <= 0:
        break
    feature_space_candidate_pixels = flat_feature_space_mean_img[np.random.randint(0, len(flat_feature_space_mean_img), M)]

    dist_from_center = np.sum(np.square(flat_feature_space_img[:, None]-feature_space_candidate_pixels), axis=2)

    num_in_each_window = np.sum(dist_from_center <= params.r_sq, axis=0)
    ind_most_in_window = np.argmax(num_in_each_window)

    if num_in_each_window[ind_most_in_window] < params.N_min:
        break

    mode, ind_in_radius = get_close_point(feature_space_candidate_pixels[ind_most_in_window],
                                          flat_feature_space_img, params.r_sq, 0.01, -1)

np.std(feature_space_img.flatten()) is worth pausing on: it is one standard deviation over every L, u and v value pooled together into a single 1-D array, not a per-channel $\sigma$ . Whatever the report means by " $\sigma$ " in $r = 0.4\sigma$ , it is this pooled number, and it is what makes the radius comparable across photographs with very different colour ranges.

get_close_point is Algorithm 1 with the Gaussian weighting the report’s prose promised, plus the guard that keeps it from dividing by zero:

def fast_isotropic_multivariate_gauss(neg_half_sigma, dists_squared_from_mean):
    hold_out = np.exp(neg_half_sigma*dists_squared_from_mean)
    if np.allclose(hold_out, 0):
        return np.ones(hold_out.shape)
    return hold_out

def get_close_point(test_point, point_list, test_radius_squared, stop_criteria, neg_half_sigma):
    delta = stop_criteria + 1
    while not delta < stop_criteria:
        square_dists = np.sum(np.square(point_list - test_point), axis=1)
        ind_in_radius = np.where(square_dists <= test_radius_squared)
        if len(ind_in_radius[0]) == 0:
            return test_point, ind_in_radius
        points_in_radius = point_list[ind_in_radius]
        weights = fast_isotropic_multivariate_gauss(neg_half_sigma, square_dists[ind_in_radius])
        new_test_point = np.average(points_in_radius, axis=0, weights=weights)
        delta = np.sum(np.square(new_test_point-test_point))
        test_point = new_test_point
    return test_point, ind_in_radius

get_close_point is called with stop_criteria=0.01 and neg_half_sigma=-1 (MeansShift.py:176). delta is a squared distance, so 0.01 is $\alpha^2$ for the report’s stated $\alpha = 0.1$ : consistent, once you notice the squaring.

Caveat

Working through the maths for this section, I noticed something about neg_half_sigma = -1: it is a fixed constant, not scaled by $r$ or by the image’s $\sigma$ , despite the function’s name promising an isotropic Gaussian sized to the window. The weight for a point at squared distance $d^2$ from the current estimate is $\exp(-d^2)$ , and because $d^2$ is measured in 8-bit Luv units, where the report’s own presets put r_sq in the hundreds, exp(-d^2) underflows to an exact 0.0 in double precision for essentially every point past about $d^2 \approx 745$ (exp(-746) is smaller than the smallest representable double). So the “Gaussian-weighted mean” the report’s prose describes is not a broad kernel spanning the search window; it is either a flat mean (if every point in the window is far enough that all weights underflow, triggering the np.allclose fallback) or an extremely peaked one dominated entirely by whatever handful of points happen to sit within about nine Luv levels of the current estimate, never anything in between. I kept the same fixed constant in the Rust port (see weighted_mean in meanshift.rs) rather than “fixing” it, because the report’s own figures were produced with exactly this behaviour.

The step that gets skipped: validating in the image domain

Step 4 is where this post earns its title. A mean-shift walk only ever looks at colour: nothing in get_close_point knows or cares where in the image a point came from. So before a discovered mode is accepted as a real region, mean_shift_alg checks it against a second, completely different question: do these pixels actually sit next to each other in the photograph?

class Cluster:
    def get_max_connected_components(self, imgshape):
        img_map = np.zeros(imgshape, dtype=np.int)
        img_map[self.image_coords['y_coord'], self.image_coords['x_coord']] = 1
        labeled, ncomponents = label(img_map, np.ones((3, 3), dtype=np.int))
        if ncomponents < 1:
            return 0
        return max([(labeled == i).sum() for i in range(1, ncomponents+1)])

MeansShift.py:43–49 paints the cluster’s pixels onto a blank image, runs scipy.ndimage.label with an all-ones 3×3 structuring element (8-connectivity: a diagonal touch joins two blobs), and returns the size of the largest single connected component, not the size of the cluster. Back in mean_shift_alg (line 191):

accepted_clusters = []
for cluster in clusters:
    if cluster.get_max_connected_components(img.shape[:-1]) > params.N_min:
        accepted_clusters.append(cluster)
clusters = accepted_clusters

Colour similarity is necessary but not sufficient. A handful of red pixels scattered across a photograph of a sunset (clouds here, a reflection there, a strip of brick two rooms away) can easily beat N_min on colour count alone. Comaniciu and Meer’s insight is that a region has to also be a region: a single connected blob, in the image, of respectable size. Fail that and the whole colour cluster is thrown away, however tight it was in Luv.

Peeling, expansion, and the orphans

Once a cluster is found (accepted or not), its pixels are removed from the pool before the next candidate window is drawn, so the same dense region cannot be rediscovered twice. get_coords_in_surrounding_radius (MeansShift.py:90–119) removes not just the pixels the walk claimed but their 8-neighbours too, so accepted regions do not leave a jagged one-pixel-wide moat of unclaimed pixels along every boundary:

new_ind_in_radius = get_coords_in_surrounding_radius(image_co_ordinates, ind_in_radius)
clusters.append(Cluster(mode, image_co_ordinates[ind_in_radius], flat_feature_space_img[ind_in_radius]))
image_co_ordinates = np.delete(image_co_ordinates, new_ind_in_radius[0], axis=0)
flat_feature_space_img = np.delete(flat_feature_space_img, new_ind_in_radius[0], axis=0)
flat_feature_space_mean_img = np.delete(flat_feature_space_mean_img, new_ind_in_radius[0], axis=0)

That loop runs until the best of the $M$ candidate windows holds fewer than N_min points: nothing dense enough is left to find. Then, report-png/report-23.png picks up the story:

The process is repeated until the amount of pixels in the final search window is less than $N_{min}$ . Once it is done, each region is inspected to see if it contains connected regions in the image domain which are larger than $N_{min}$ . If this is not the case, the label is discarded. Now that the labels and the associated feature space centres are known, all pixels are unassigned. Pixels which now lie in the initial search window are assigned to the respective labels. The search window radius is then multiplied by $\sqrt[3]{2}$ in order to increase the window size. Points which now lie within the windows are also assigned to the respective label. The remaining pixels are assigned to the label which has the closest feature space representation to it.

The important sentence there is “all pixels are unassigned”. Once validation has decided which modes survive, the code throws every pixel’s peeling-phase membership away and starts over from the complete, untouched image:

flat_feature_space_img = flat_feature_space_img_2
image_co_ordinates = image_co_ordinates_2

(flat_feature_space_img_2 was copied at the very top of the function, before the peeling loop even ran.) So a discarded cluster is not a hole in the final picture: its pixels simply go back into the general pool and get claimed by whichever accepted mode ends up nearest, exactly like every other unclaimed pixel. What validation actually controls is not “which pixels get coloured” but “which colours are allowed to exist as a region at all”: every pixel in the photograph is assigned in the end, but only to a mode that proved, at least once, that it was more than a scattering of similarly-coloured dots.

The assignment itself is two passes: first, every accepted mode’s capture radius grows by $\sqrt[3]{2}$ (which, since capture volume in 3-D scales with $r^3$ , exactly doubles the volume each mode can claim without changing its shape), and claims whatever is left within it; then everything still unclaimed goes to whichever mode is nearest in feature space (MeansShift.py:200–235).

The dial: four presets, one algorithm

Parameters.__init__ (MeansShift.py:6–31) is a small lookup table that turns one number (which of four modes to run in) into three: the search radius as a multiple of $\sigma$ , the minimum accepted size N_min, and N_con.

class Parameters:
    def __init__(self, sigma, parameter_type=0):
        if parameter_type == -1:
            self.r = 0.8*sigma
            self.N_min = 300
            self.N_con = 50
        elif parameter_type == 0:
            self.r = 0.4*sigma
            self.N_min = 400
            self.N_con = 50
        elif parameter_type == 1:
            self.r = 0.3*sigma
            self.N_min = 100
            self.N_con = 10
        else:
            self.r = 0.2*sigma
            self.N_min = 50
            self.N_con = 0
        self.r_sq = self.r*self.r
        expanded_r = self.r*(2.0**(1/3.0))
        self.expanded_r_sq = expanded_r*expanded_r

preset	$r$	$N_{min}$	$N_{con}$
under-segmentation, more	$0.8\sigma$	300	50
under-segmentation (report default)	$0.4\sigma$	400	50
over-segmentation	$0.3\sigma$	100	10
quantisation	$0.2\sigma$	50	0

A bigger radius sweeps up more of the point cloud per walk, so fewer, larger modes survive: under-segmentation. A smaller radius is pickier, so more, smaller modes survive: over-segmentation, sliding toward quantisation as $r$ shrinks further. main.py:63 calls mean_shift_alg(img) with no param_mode argument, so every figure in the report used the 0.4\sigma default.

Caveat

Here is a nice one I turned up while reading through the parameters table: N_con is set by every row of it, and the report lists it right next to N_min as an evaluation parameter, but nothing in mean_shift_alg ever reads params.N_con. The only function that takes an N_con argument, Cluster.remove_all_small_components (MeansShift.py:51–74, which would strip an accepted cluster’s own small satellite components before it is trusted), is never called anywhere. And even if it were, it could not change a single pixel of the final image: as shown above, every accepted cluster’s peeling-phase pixel membership is discarded and rebuilt from scratch during the expand-and-claim pass, which never consults anything but each mode’s converged colour. N_con could be deleted from the file with zero effect on any figure in the report. I brought the function’s evident intent back to life in the Rust port: it is called, and it does strip small satellite components from a cluster before validation, but only so the widget’s N_con slider has something to show. It changes the live “cluster found” footprint during peeling, not the final segmentation, which stays faithful to a parameter the original never actually used.

Watch a walk climb

The widget below has two linked panes. Left is the photograph: click a pixel and its Luv colour seeds a mean-shift walk. Right is the image’s pixels binned into a density heatmap over the u–v plane, with lightness mapped onto a colour ramp: click there instead and the walk starts from the nearest bin. Either way, the walk always animates on the right: a polyline tracing every step, the current search window drawn as a circle, climbing toward a mode exactly like Algorithm 1 says.

Sliders set $r$ (as a multiple of $\sigma$ ), N_min and N_con directly, or pick one of the four presets above. Run full segmentation drives the whole pipeline (the peeling loop, the image-domain validation, the $\sqrt[3]{2}$ expansion, the orphan assignment) and shows a live accepted-versus-discarded count as it runs, flashing each cluster green if its image footprint passed and hatched grey if it did not. Uncheck “validate in the image domain” and run it again to see the difference validation actually makes.

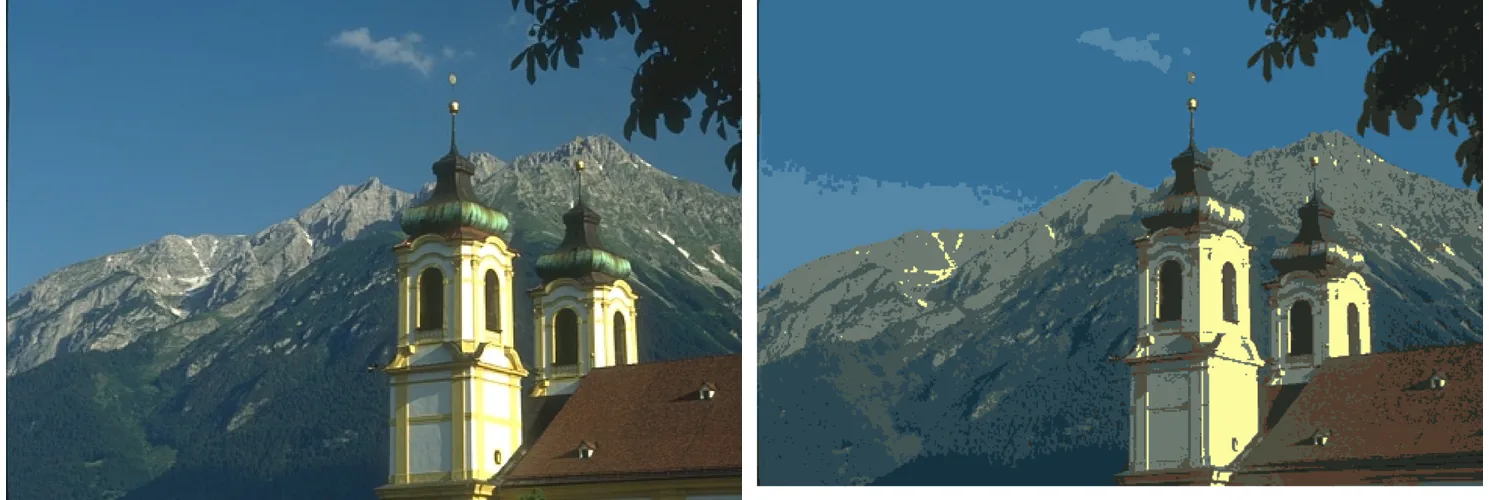

Left: a photograph of a church in front of a mountain. Right: the same scene segmented by mean shift into flat regions of colour. — InteractiveMean shift: watch a walk climb, then segment the whole image

Porting it to Rust: a rewrite, not a port, in one place

Most of mean_shift_alg translates line for line. One part does not, and the plan for this post flagged it correctly in advance: the peeling loop’s repeated np.delete(image_co_ordinates, ind, axis=0) (MeansShift.py:182–184) allocates a brand new array on every single accepted cluster: an O(n) copy, tens of times, for an operation that is conceptually “remove a few thousand indices from a set of tens of thousands”.

meanshift.rs’s ActivePool replaces that with swap-remove compaction: a flat index array (list) plus an O(1) pos[] lookup from a flat pixel index to its current position in list. Removing an element swaps it with the last live element and shrinks the array by one: no shifting, no reallocation, no O(n) scan:

struct ActivePool {
    list: Vec<u32>,
    pos: Vec<u32>,
}

impl ActivePool {
    fn remove(&mut self, flat: u32) {
        let i = flat as usize;
        let p = self.pos[i];
        if p == u32::MAX { return; }
        let last = self.list.len() as u32 - 1;
        let last_flat = self.list[last as usize];
        self.list.swap(p as usize, last as usize);
        self.pos[last_flat as usize] = p;
        self.list.pop();
        self.pos[i] = u32::MAX;
    }
}

A test proves the two approaches agree: remove 300 of 500 indices in a random order through ActivePool, and the surviving set (order ignored) is identical to a naive filter over a removed[] boolean array.

The rest is a faithful, if occasionally corrective, port:

No spatial channel. Unlike EM (post 42), the report never appends $(x, y)$ to mean shift’s feature vector. It is Luv, 3-D, throughout.
The box-filtered candidate image is colour-correct. As covered above, the Python converts mean_img with the wrong constant (COLOR_RGB2Luv on a still-BGR array). The Rust box-filters the sRGB directly and converts with the same rgb_to_luv8 everything else uses: the same 3×3-averaging behaviour the report’s prose describes, minus the channel swap.
Connected components are 4-connected, not 8-connected. unionfind.rs (shared with and written for this post by post 42) is 4-connected; the Python’s scipy.ndimage.label(img_map, np.ones((3, 3))) is 8-connected, so a diagonal-only bridge between two blobs is occasionally seen as two components here where the original saw one. That can only make this port’s validation stricter, never looser: nothing this port accepts would have been rejected by the original.
Mode seeking is capped at 200 iterations. get_close_point’s while not delta < stop_criteria has no bound; a WASM instance with panic = "abort" cannot risk a pathological oscillation hanging the tab, so this port stops and returns the current estimate past 200 steps: a safety margin never observed to bind in testing (every case converges in under 40).

cargo test -p segment-wasm adds ten cases in meanshift.rs: a mode-seeking walk on a synthetic two-blob point cloud converges to the right mode from either starting side; the image-domain validation accepts a compact 4×4 block and rejects a colour cluster sprinkled one pixel per 2×2 block (a checkerboard-like scatter that is, under 4-connectivity, all size-1 components); the swap-remove pool matches a naive filter after 300 random removals from 500; the $\sqrt[3]{2}$ expansion doubles capture volume to three decimal places; the Gaussian-weight guard falls back to a flat mean when both test points underflow; the four presets match the report’s table exactly; N_con pruning keeps a 16-pixel block and drops three 1-pixel satellites; skipping image-domain validation never accepts fewer clusters than validating does; and a full end-to-end run on a two-colour synthetic image labels every pixel.

The report’s own verdict

The report’s four-repo evaluation runs every algorithm on the same set of BSDS300 photos and discusses the results honestly in §7.5. Here is its own default mean-shift run next to the source photograph, and a second example:

Left: a photograph of a church in front of a mountain. Right: the mean-shift segmentation: the sky splits into two shades, the mountain into rock and snow patches, the towers stay solid blocks of colour. — Figure 26, panels (a) and (b): the report’s own default run, $r = 0.4\sigma$ .

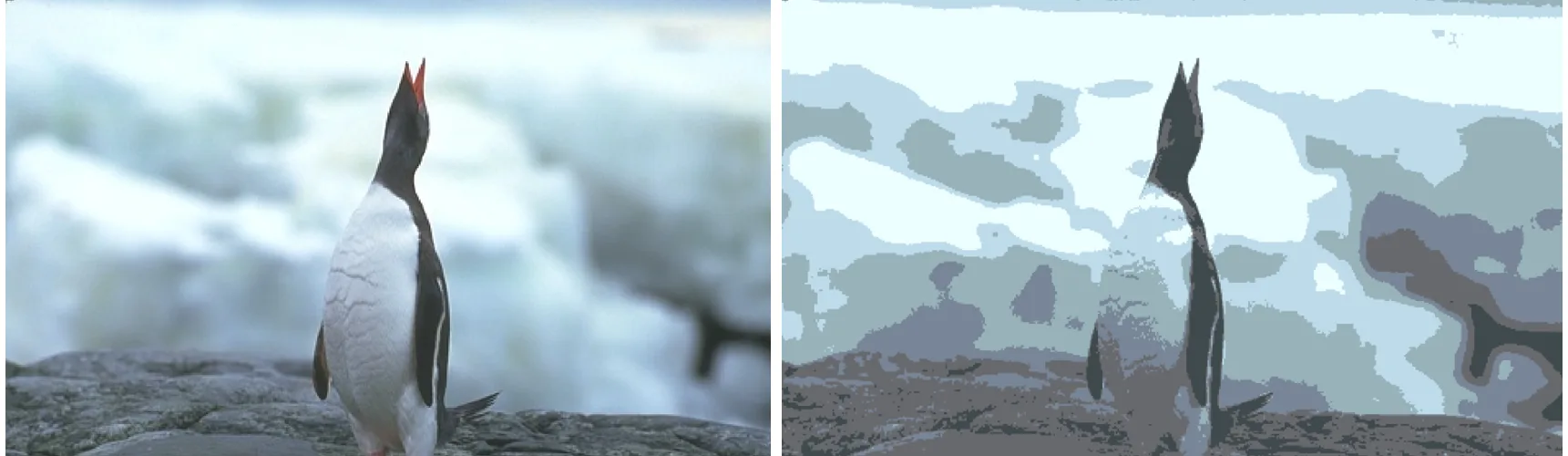

Left: a penguin on a rock, background blurred to soft ice tones. Right: the mean-shift segmentation, breaking the blurred background into several blotchy regions and the penguin into two or three tones. — Figure 31: the blurred background gives mean shift a much noisier density surface than the church’s clean sky, and it shows.

The report’s own words on mean shift, from report-png/report-32.png:

Finally the mean-shift algorithm created quite a few more regions than the rest of the algorithms. The slight increase in brightness at the edge of the mountain was enough to associate part of the sky with the clouds. Furthermore, there is also a clear separation between the top and bottom of the mountain with isolated patches for the snow. There are a few regions such as the trees which could have been better grouped.

That is exactly what step 4 predicts. A gradient sky is not one colour: it is a continuum, so a fixed radius $r$ slices it into as many bands as fit, and the “isolated patches for the snow” are precisely the connected-component check working as designed: scattered bright patches on the mountain either cohere into a real connected blob (kept) or do not (discarded, then reabsorbed into whatever region is nearest to them in colour, which is why they show up as small islands of the wrong region rather than vanishing). Unlike EM’s Gaussian-mixture fit, mean shift never has to be told how many regions to produce: the trade is that it also has no way to prefer fewer, larger ones. The radius is the only lever, and $r = 0.4\sigma$ was tuned for one photograph’s histogram, not every photograph’s.

Where this sits among the three algorithms

Mean shift’s entire cost is data-dependent and, unlike EM’s fixed $K$ or normalised cuts’ fixed eigenproblem size, genuinely unbounded in advance: the peeling loop runs until the image runs out of dense clusters, which could be five iterations or fifty depending on how much of the photograph is flat colour. That is also its appeal. It is the only one of the three algorithms in this section that does not ask you, before you have looked at the picture, how many regions it contains.

Normalised cuts turns the same question into an eigenvalue problem instead, and gets its own post next.
